See inside hypervelocity impacts with our SCF450S high-energy-level system
The 450S is ideal for research involving Hyper velocity impact studies.
Observe the first layer of protective covering vaporize when objects like space debris crash into a satellite at 15 km/s.
An adjustable high-energy-level “plus” system to match your needs
The 450S has a little extra kick compared to the 450. We’ve added 30,000 volts!
If you imagine its power output over a full one second, that would be equivalent to 300,000 more watts of power than the 450 system.
Each Scandiflash system offers the option to fine tune the energy output level to match your needs within a specified range. The 450S is our high-energy-level “plus” system.
The 450S generates a broad band intensity spectrum with a maximum intensity located at an energy about 1/3 of the maximum energy output. Since we’re able to vary the maximum energy output between 240 and 480 keV, that means we can fine tune our energy maxima to be in the order of 80 to 160 keV. And that’s ideal for capturing X-ray images through several centimetres of steel and objects moving at hypervelocity speeds.
Trigger certainty
When tuning the energy of your system the pressure of the Marx generator Pulser also needs to be regulated to prevent un-wanted discharge events. Users of Scandiflash Flash X-ray systems don’t worry about “pre-fire” or “no trigger” errors.
We’ve accomplished this by designing our systems to automatically set the correct pressure required for a selected voltage in our Marx Generator Pulsers. No complicated tabulation and testing of parameters – simply select the voltage desired, and our system optimizes for each X-ray pulse. Experiments can be completed more reliably and stay on schedule!
Real-world flexibility that impacts the bottom line
Because we’ve designed our systems to be modular, the 450S system is capable of being converted to either a 450 or even a 300 system. You can convert your system to match changing research requirements. And that kind of option gives real security and investment flexibility for your research.
Standards your research can rely on
The system is CE marked and includes safety features like overpressure valves and pressure readers. In addition to training and installation, we also offer optional equipment like X-ray shielding and emergency shut-offs.
The SCF450S system has 6 core components:
– PG450S Marx generator pulser
– multi-purpose X-ray tube
– control tower
– Scandicontrol software
– RPS 30 service station
– CAD 70 for pressure regulation which uses compressed dry air rather than hazardous SF6
Varying cable lengths allow for maximum setup flexibility

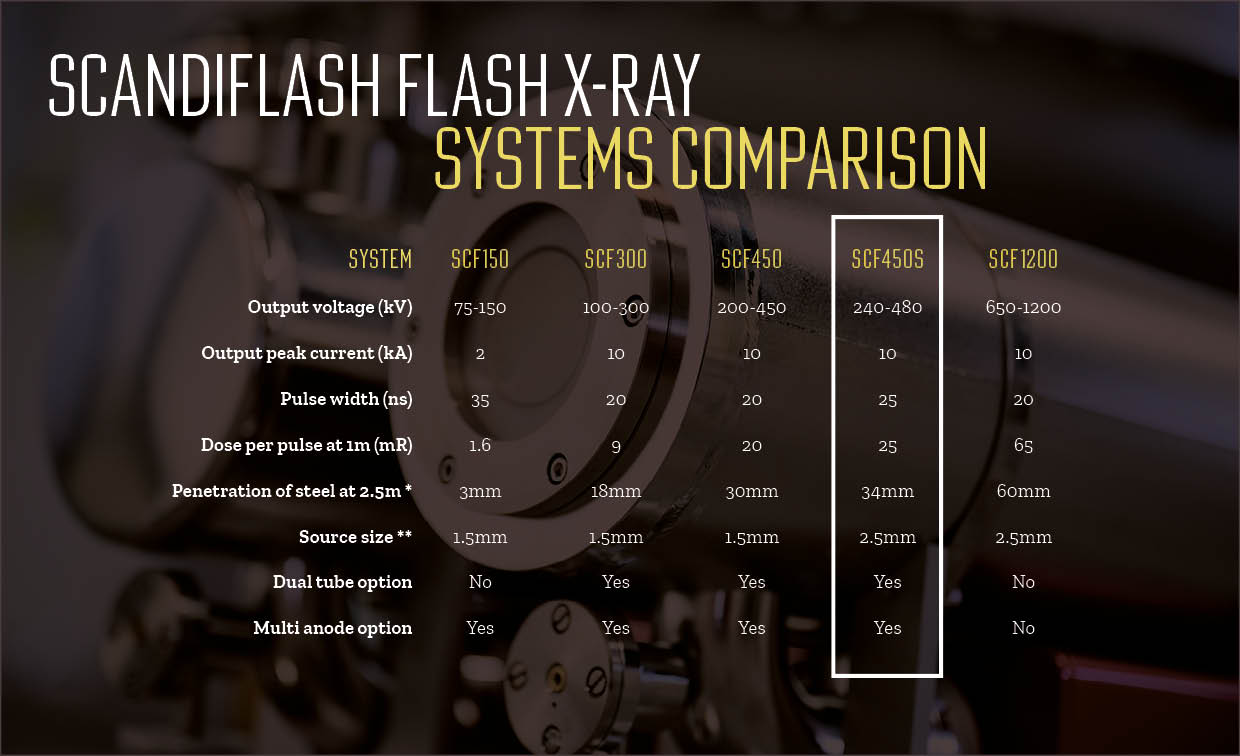

The SCF450S system specifications
– variable output voltage ranging from 240-480 kV
– output peak current is 10 kA
– 25 ns short pulse
– dose per pulse at 1m is 25 mR
– the 450S can penetrate 34mm of steel at a distance of 2.5m
– the user can select between a 1, 2.5, and 4mm spot size
– supports both our dual-tube and multi-anode options
We’re here to help you
Choosing Scandiflash means you get a flash X-ray system that’s built to meet your needs both today and tomorrow as well as a team that’s ready to support you.
Want to know more about taking your research to the next level? We’re curious to hear what you can imagine doing and seeing with our technology, so get in touch with us through our website or just give us a call at +46 18 557510.
